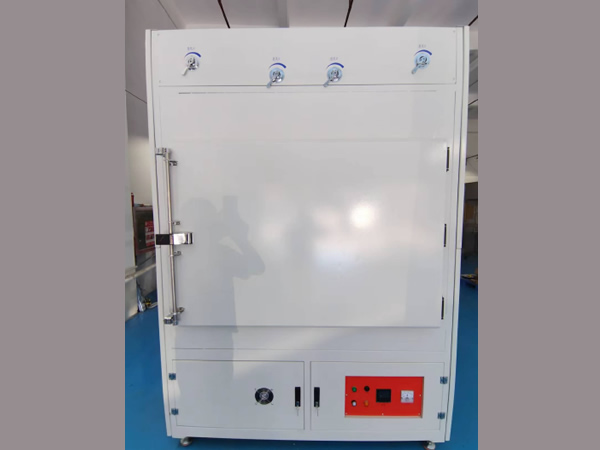

Equipment features and advantages
1. Fully automatic door (automatically opens upon completion of baking, cannot be opened before baking time); Equipped with automatic connection signal transmission.
2. The device is equipped with an electronic frequency converter, which can save 5% -10% of electricity;
3. Add high-efficiency air filtration device to the air inlet to make the baking plate cleaner;
4. The baking method is designed as a dedicated frame track, with one frame placed on three tracks.
5. The machine has alarm function and automatic power-off function for overheating.
6. Exterior paint: Wrinkled white PANTONE 649C, interior made of stainless steel, with good insulation effect and fast heating inside the machine.
7. Using German Omron electronic control, stable operation;
8. The heating tube is made of ceramic strip stainless steel material imported from Taiwan and equipped with two heating tubes;
9. Japanese made temperature controller, high-precision PID automatic calculation, paired with SSR interface, low failure rate and precise temperature.
10. Dual over temperature protection system, with one section of over temperature protection set internally by the temperature controller for protection; The second section furnace top overtemperature protection switch is set for protection, and an alarm and abnormal indicator light are displayed to notify on-site personnel for handling.
11. The machine is set to adjustable temperature in multiple stages; Single stage control operation is also possible; Multiple operations can also be performed simultaneously.
12. Operation mode: PLC touch screen control system.

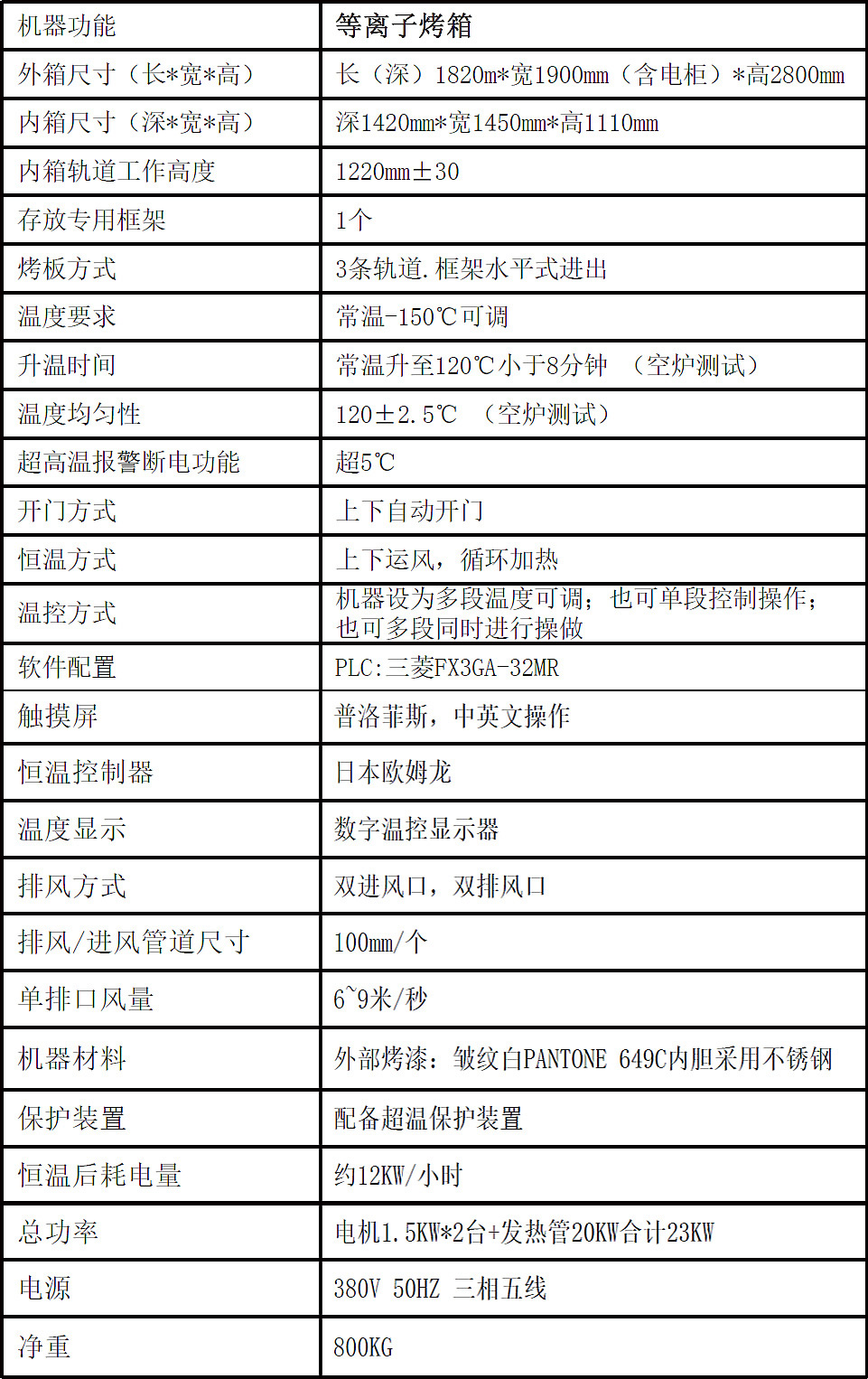

Main technical parameters
